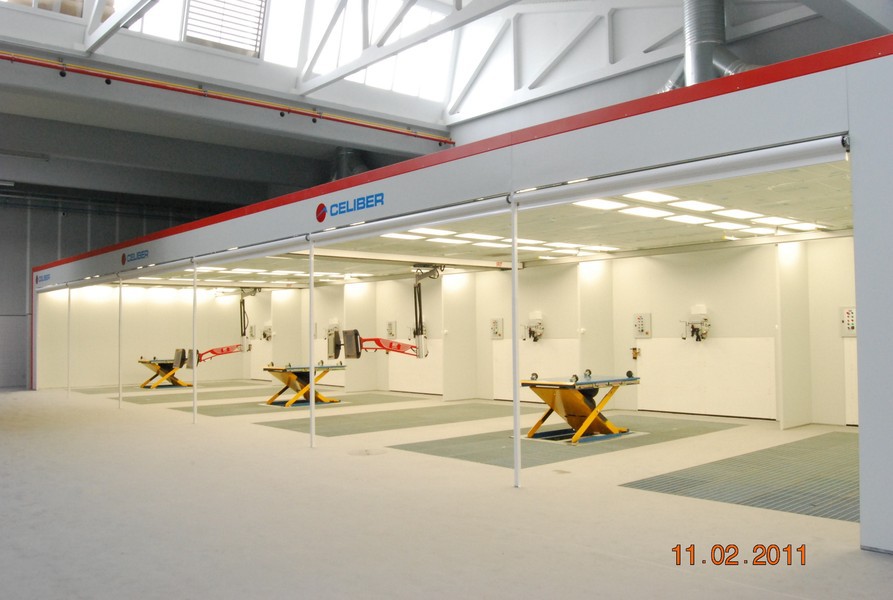

Preperation Bays

CABIN
Designed by Celiber, aspiration group composed of:
Metallic support structure:
Composed by a galvanized and bended sheet with a thickness of 15/10, riveted and sealed, forming a compact structure, reinforced to give it a high rigidity.
The two panels which make up the mobile hatches that serves to the inspection of the filters and the ventilation section, are fixed to the structure with a quick disassembly system, that make possible an easy maintenance.
Every panel has some handles to make the movement easier.
FILTER SECTION
Composed of stainless steel trays that support 5 filters of 490 x 590 mm, with these characteristics:
Stainless steel outline. Thickness of 5 mm.
Synthetic filter model VNF/290 with not woven fibers progressively structured.
The clean air face printed with the DIN identification and the allowed number.
Effectiveness: 90% gravimetric according to ASHRAE 52/76
Class: “G-3” according to European regulations EN-779.
Welded mesh of 12x24 of 0,7 mm with “V” form and fixing in a sandwich panel the filter.
Final leak to a dirty filter: 20 mm. H2O.
VENTILATION SYSTEM
The ventilation section is composed by a triple paddle-wheel fan with double aspiration, joint to the motor by belts and pulleys. The fan is fixed with screws.
At the end of the tree of the fan a pulley is placed, and is where the trapezoidal drive belt passes.
The motor is installed on rails that allow an easy regulation of the belts tension.
Communication between group and Plenum is done by a T connexion with a valve to change the phase (spraying-drying) that is automatically controlled with the analogue control panel.

Carácteristicas Área de Preparación

BASEMENTS
Several options for aspiring air, with or without civil work.
Possibility of install reinforced grids in the tyre tread.
CONTROL PANEL
Analog keyboard with buttons and cores.

Please contact us for prices and more information.
