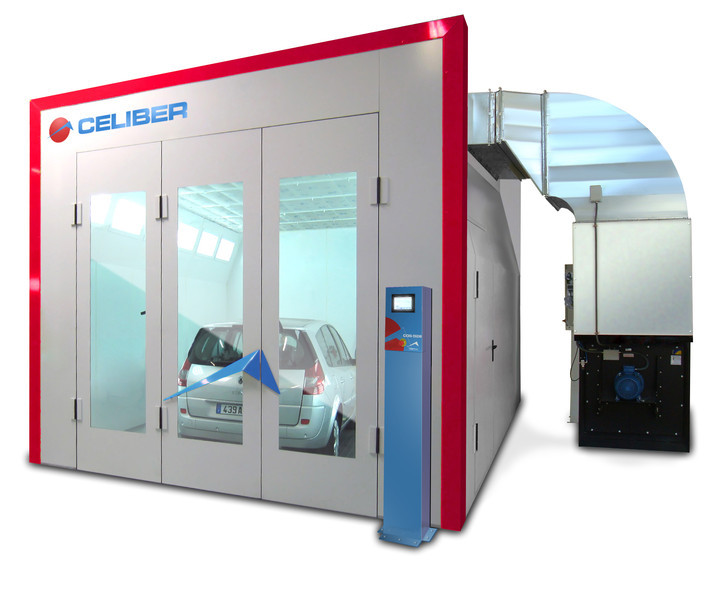

Advantgarde

CELIBER EXCLUSIVE PANELS
Our exclusive panels are made in only one piece, from top to bottom. Easy to assemble and that most important, they are manufactured with high efficiency rock wool (145 Kg/m³), which makes them fireproof.
They are constructed by white pre-lacquered sheets on both sides, which are fixed to the rock wool by a special compound that together with the later vacuum pressed, results in a sandwich panel, rigid, robust and with no external connections.
The panel has a reinforced structure inside, so other elements are not needed to fix it. As a result, the air flow is completely laminar and clean, as there are not obstacles or projections, so we do not find any air turbulence or particulate accumulation.
All the parts are pre punched by a high quality technology machine, resulting a perfect assembling without drills or cuts.

AIR HANDLING GROUP
Designed by Celiber, with one or two motors, depending on the version.
Direct transmission – Directly from the motor axle and the turbine, no pulleys or belts needed.
Backward curved impellors for optimum performance, easy maintenance and cleaning.
It can be placed on the sides, rear or on top over the Spray Booth.
High capacity due to the reaction turbines.

BASEMENTS
Several options to aspirate the air, with civil work or not, metallic basement, lateral or rear extraction.
Possibilities of air flow: Full down draft, semi down draft, side draft and oblique.
It is possible to use different kinds of grids, with different capacities.

ELECTRONIC LIGHTING
We use electronic reactance instead of chokes, assuring a longer life for the fluorescent lamps.
Side lights as optional or standard, depending on the Spray Booth type.

LED LIGHTING
It is available as option. This is the first spray booth incorporating LED electronic screens, giving to 2.500 LUX of pure and white light, it is perfect for painting works as it is not polluted with other colors photons.
Less electronic consumption and durability for all its service life. Duration of LED screen: 80.000 hours of use.

HEATING SYSTEM
Wide range of systems to heat the air:
Classic diesel or GAS burner with heat exchanger (boiler)
Direct Combustion gas burner, eliminating the outgoing gas chimney due to the total combustion of the gas.
Vapoure exchanger system.
Hot water heaters.
Electric reactance.
Heat recovery systems, recommended for low temperature areas, it can recover between 50 and 80% of the heat.
Possibility of control of relative humidity, using systems to drop the temperature.

CONTROL PANEL
Depending on model:
Programmable Advanced touch PLC, MAGELIS model, with tele-assistance, remote control, data base control and export to Excel, multi user, multi work program, etc. It is able to program the parameters even in each work phase. It is standard in all the AVANTGARDE spray booths range.

Connectivity by USB and Ethernet.

Please contact us for prices and more information.
